Description

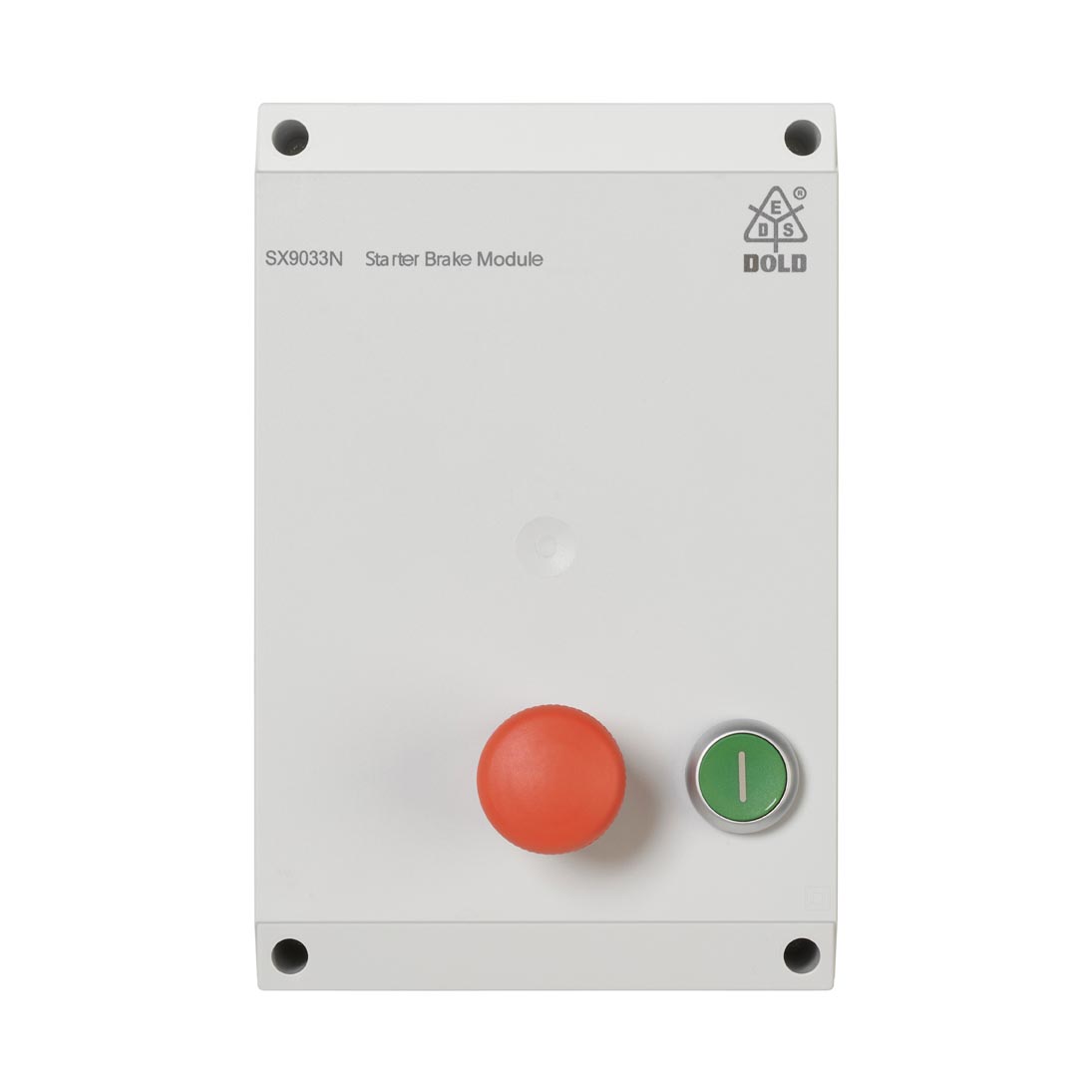

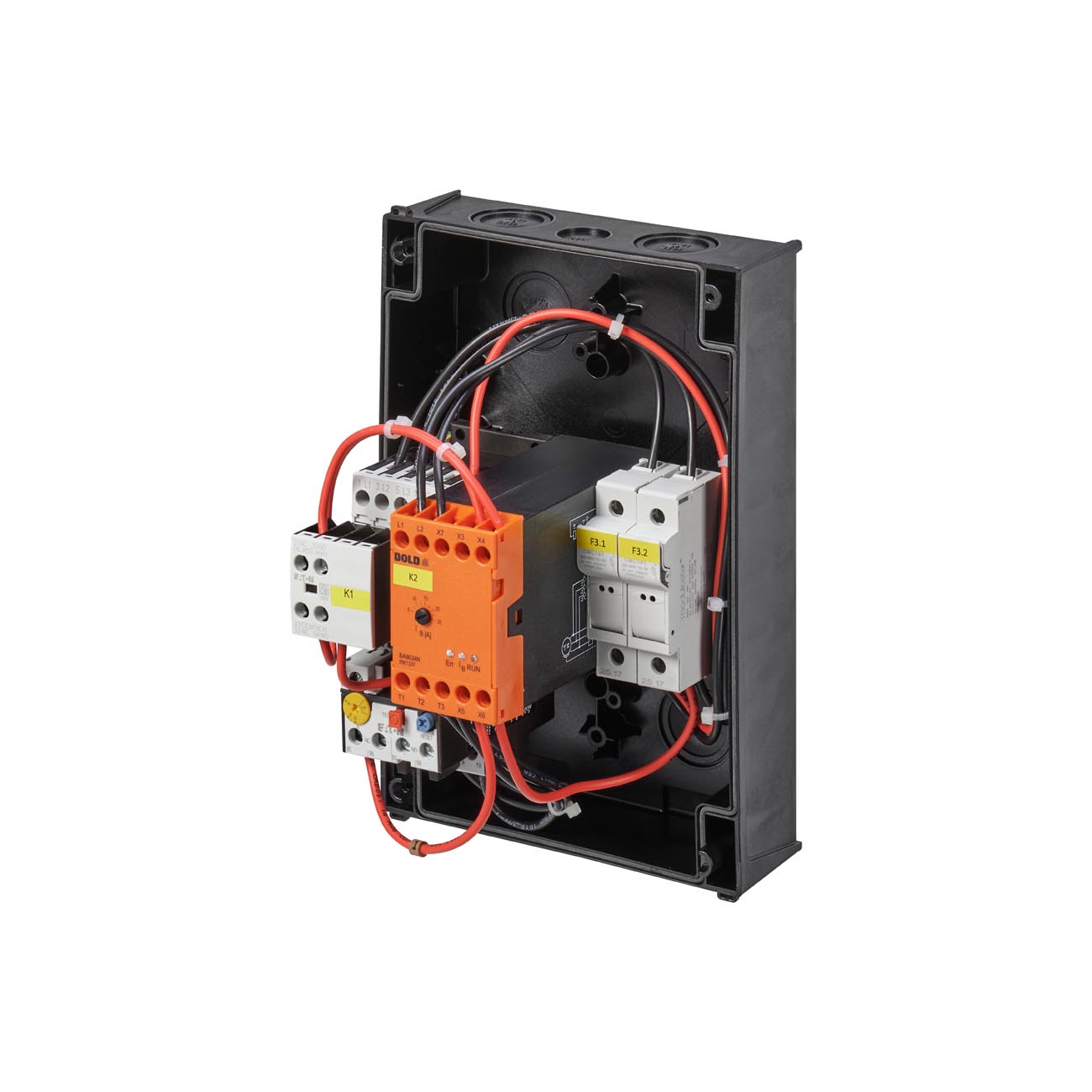

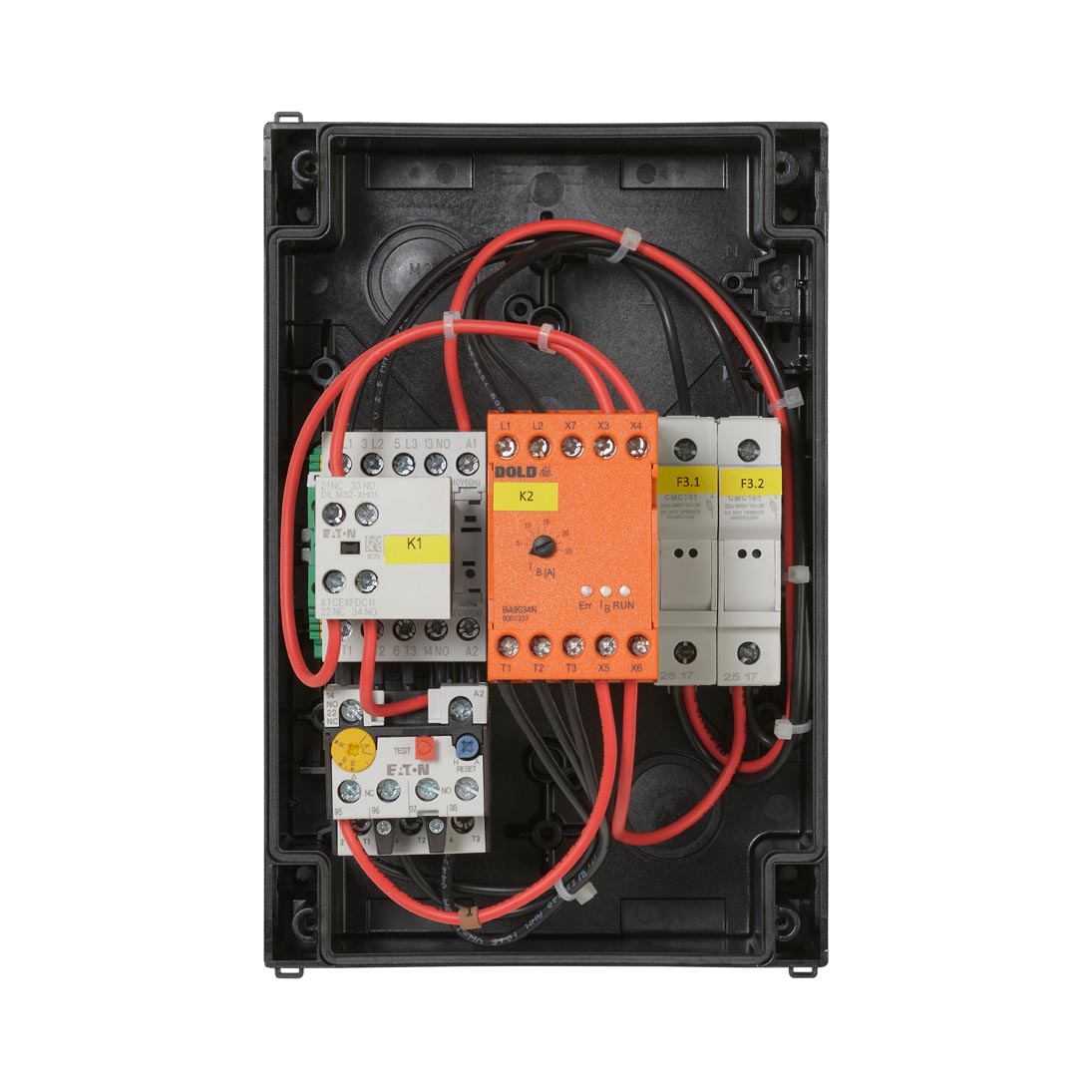

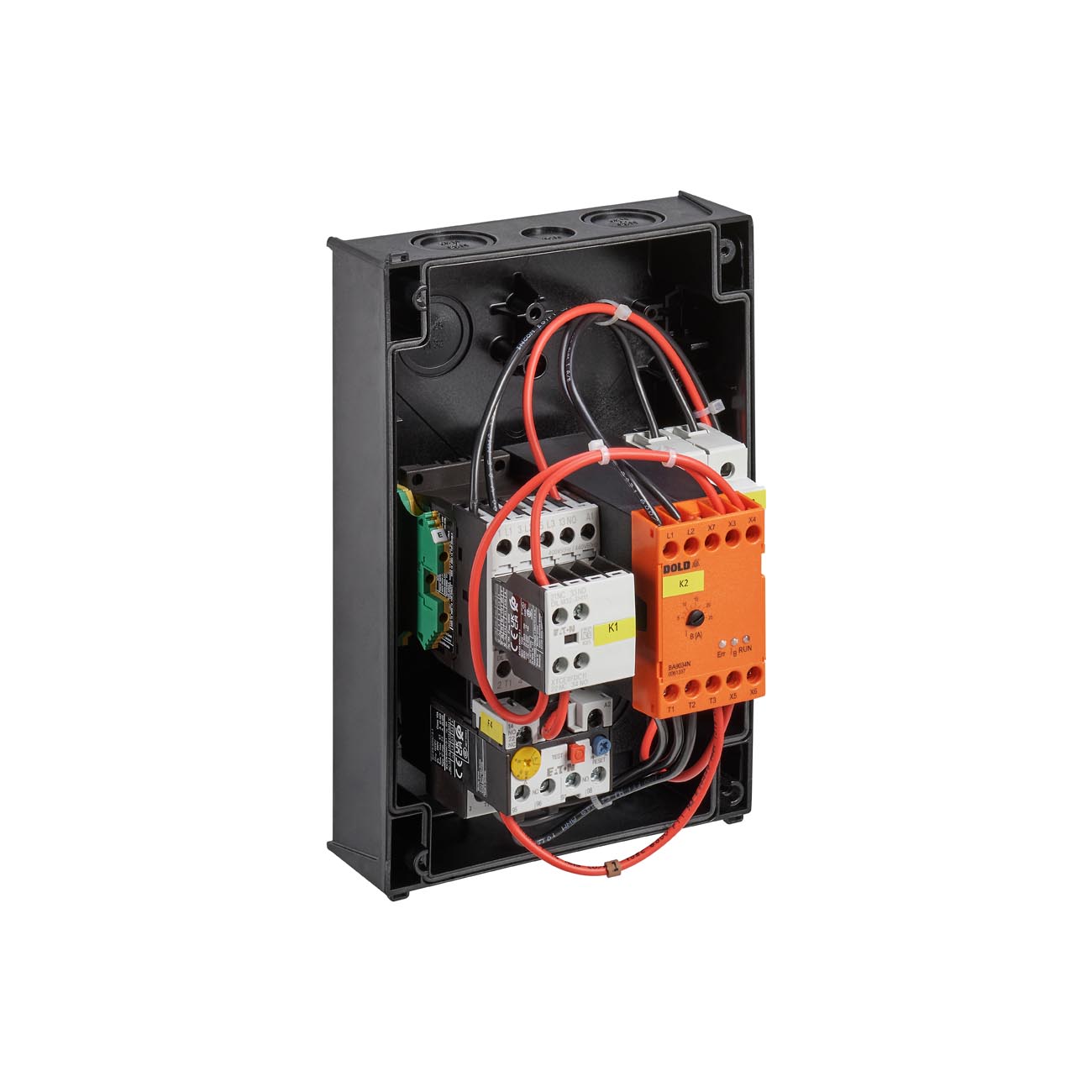

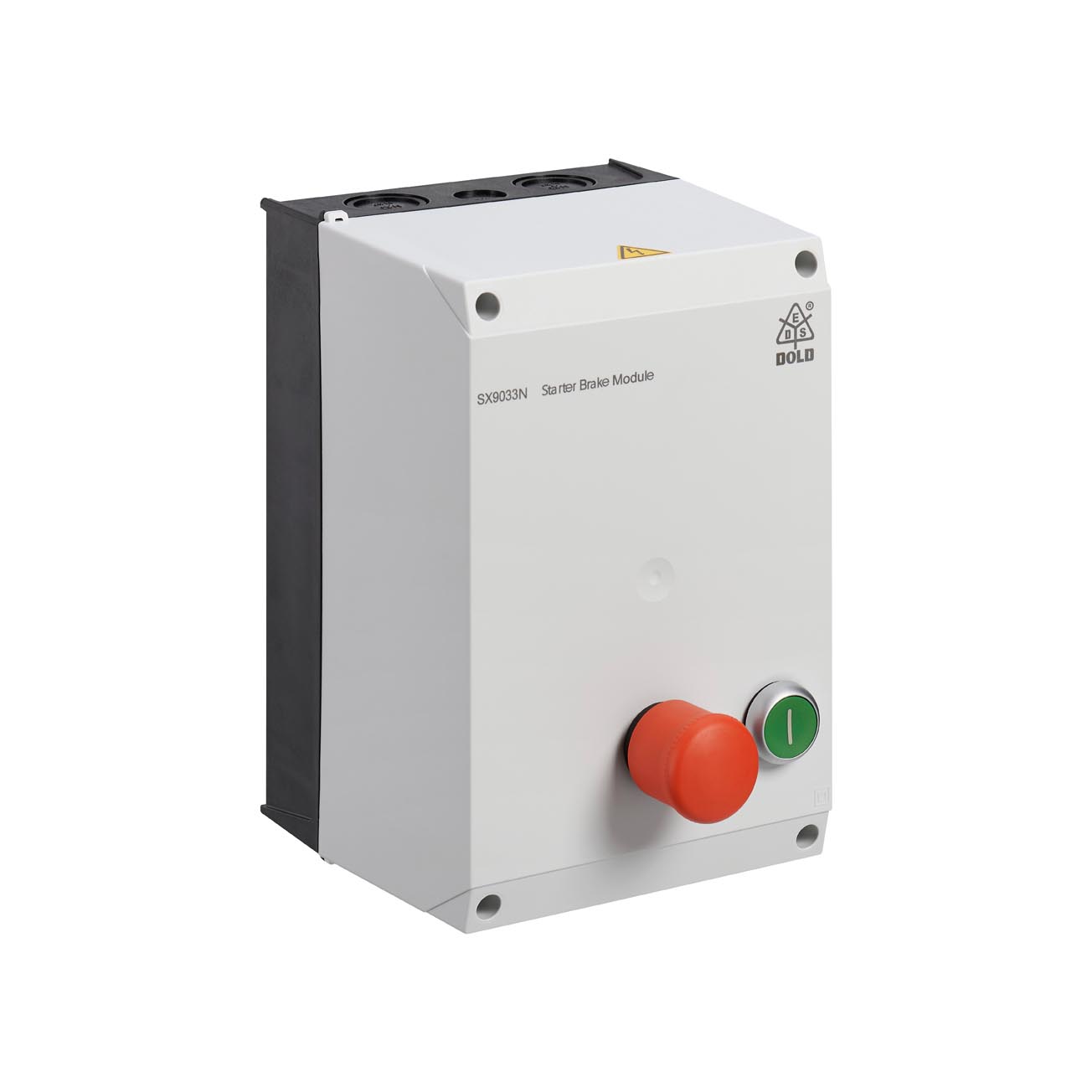

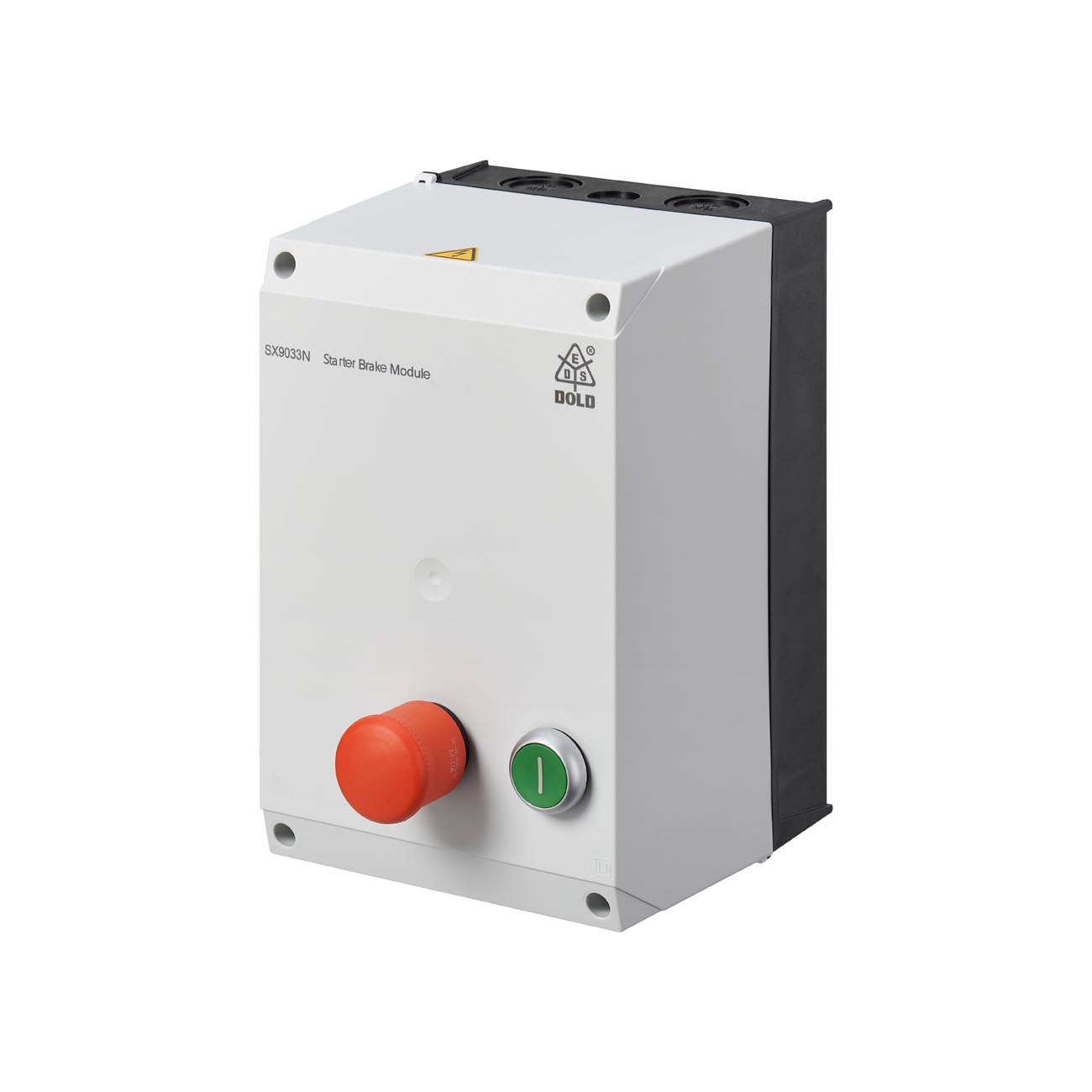

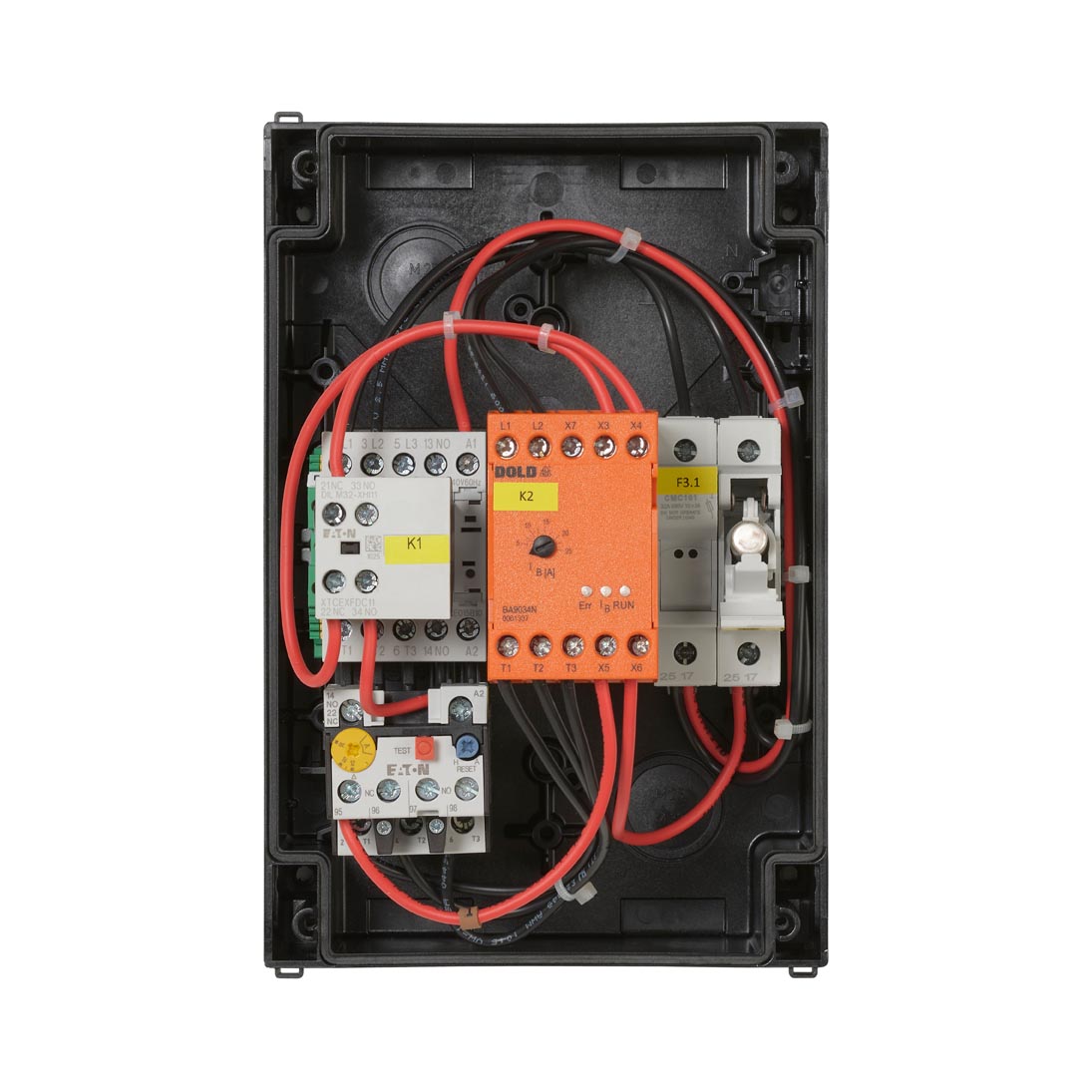

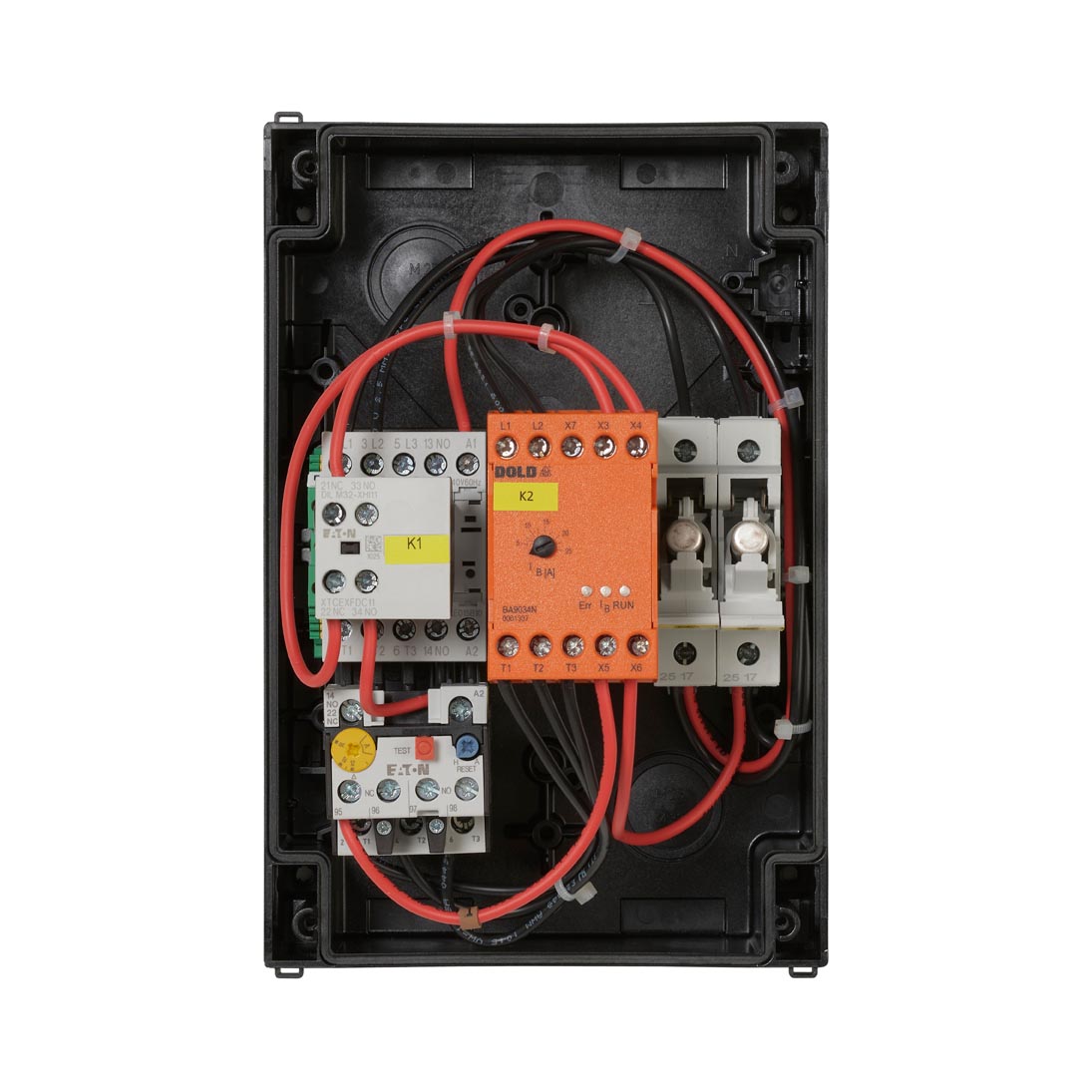

A compact IP65 screw-mounted motor brake relay and starter combination, designed for direct-on-line (DOL) three-phase motors rated from 500W to 7.5kW.
- Braking current (IB) adjustable via a single potentiometer scaled 10-100% (2.5A to 25A).
- Three LEDs indicate power connected (green), fault (red) and DC current injection (yellow).
- Standstill monitoring with an internal contactor connecting the brake relay DC output to the motor.
- Interlock contact X5-X6 avoids motor restart while braking current is injected.
- Built-in safety brake override timer stops the braking cycle if standstill is not detected within the safety time.
- Braking is initiated by a close-open-close volt-free contact sequence at terminals X3-X4.
Datasheets and wiring guidance are available from DOLD UK. Contact our technical team for help selecting the right model.
